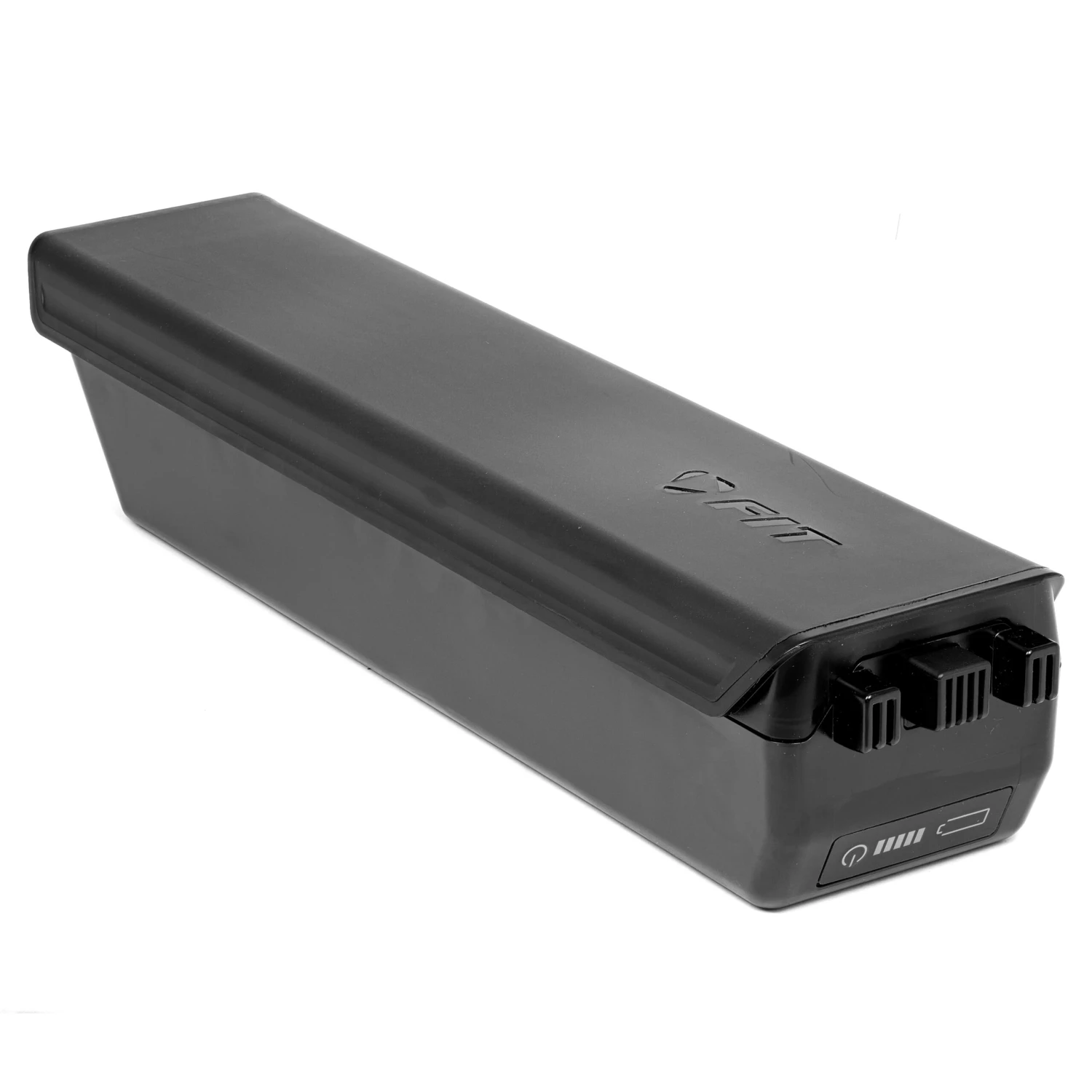

FIT 2.0 Ultracore E-bike Battery

The FIT Ultracore e-bike battery was developed for integration in the down tube and is perfectly matched to the FIT 2.0 system. The Ultracore FIT batteries come in three different capacity sizes, which can also be exchanged / replaced with each other, since the interfaces to the down tube are identical in all three variants. Regardless of short- or long-distance, the FIT batteries cover a wide range of applications. Thanks to an intelligent battery management system, the batteries are protected against overcharging, undervoltage or overheating.

Features of the FIT Ultracore e-bike batteries

Ultracore 555 FIT 36 V 15 Ah battery pack

• Voltage 36 V
• Nominal energy 555 Wh
• Minimum capacity 15 Ah
• Dimension L×W×H 385 × 87 × 75 mm
• Weight 3 kg

Battery Ultracore 740 FIT 36 V 20 Ah

• Voltage 36 V
• Nominal energy 740 Wh
• Minimum capacity 20 Ah
• Dimension L×W×H 385 × 87 × 75 mm
• Weight 3.7 kg

Battery Ultracore 925 FIT 36 V 25 Ah

• Voltage 36 V
• Nominal energy 925 Wh
• Minimum capacity 25 Ah
• Dimension L×W×H 385 × 87 × 95 m
