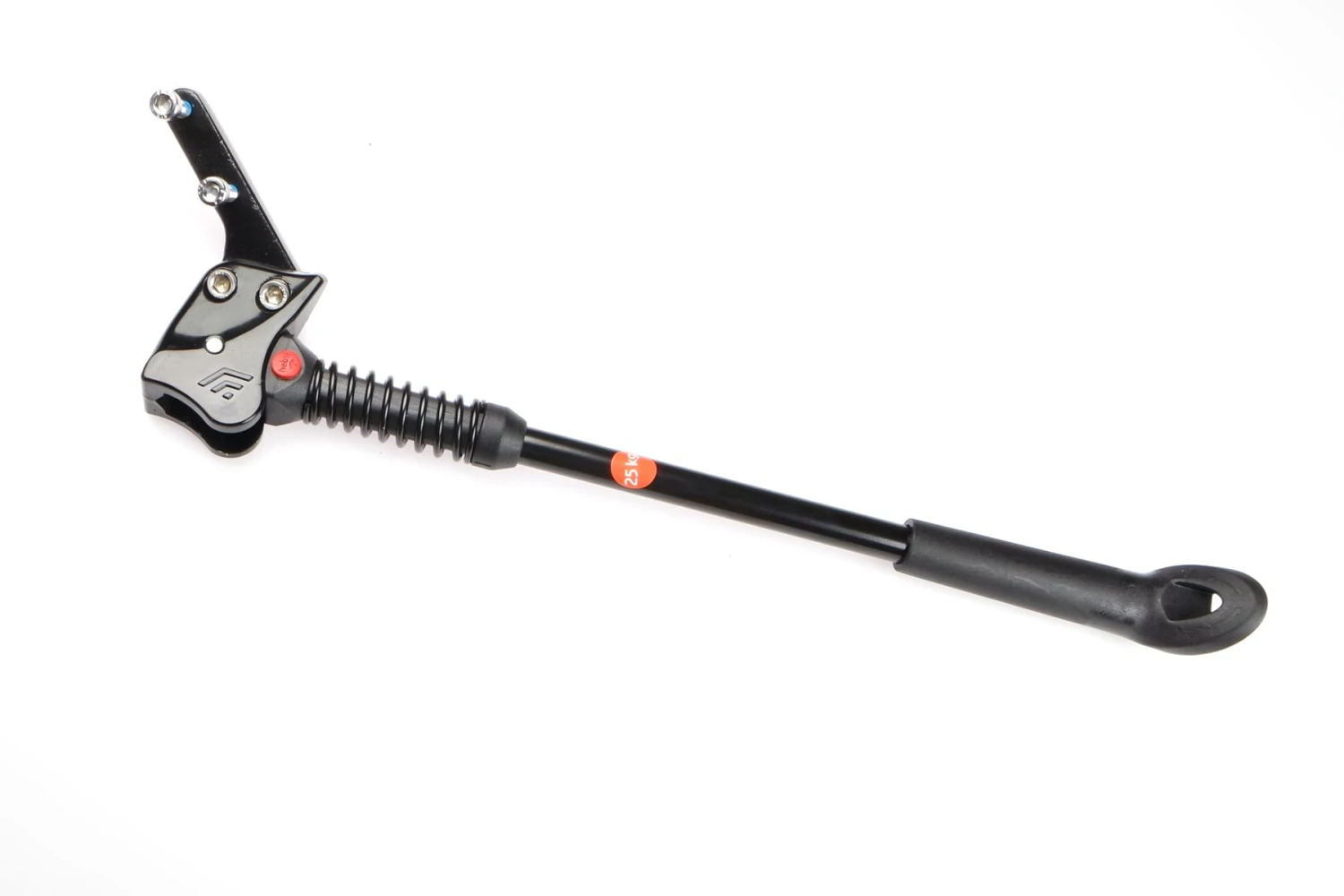

Hebie Rear Stand Incl. Adapter For Haibike Hardtail

With this rear stand kit you can use the existing mounting solution on your Haibike S-Duro and X-Duro and park the e-bike safely.

• The stand can be adjusted without tools by turning the stand foot.
• The adjustment range is at least 34 cm and can be adjusted up to a maximum of 38 cm.
• The distance was measured as it is also used when parking the wheel.

• The stand has a load capacity up to 25 kg.

• The adapter is screwed into the Haibike own dropout, for this the rear wheel must be removed.

When measuring the necessary length, please note that the rear stand protrudes from the wheel at an angle of approx. 60°.

Determining the stand length:

To determine the required stand length, you must measure the distance from the 18 mm stand mount on your frame or on the screwed-on retaining plate, to the ground, at an angle of approx. 60°.

Haibike Hardtails:

• The hole spacing is exactly 18 mm and thus fits exactly to the Haibike E-Bike stand mounting plate.
• The retaining plate is mandatory for all hardtail models – e.g. S-Duro HardSeven SL.
• The mounting plate must be fixed after dismounting the rear wheel at the left dropout, from the inside, with 2 screws on the frame.

Haibike Fullys:

• It turns out that the Hebie Fix18 stand does not fit without modification due to the dropout on the rear stay of the Fullys.
• Alternatively, we now offer a rear stand which also fits Haibike fullies.
• Esge / Pletscher rear stand

The technical details of the Hebie rear stand Fix 18:
