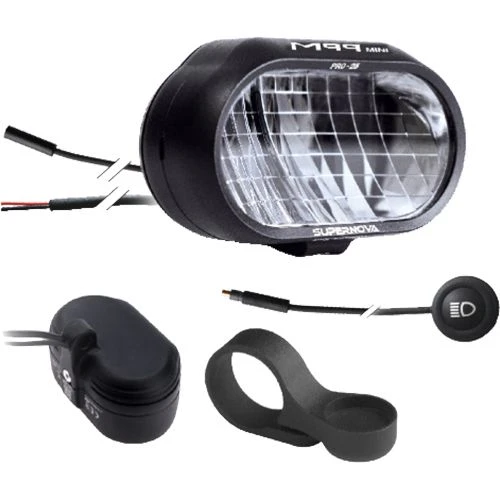

Supernova M99 Mini Pro 25K LED Headlight For E-bikes

The Supernova M99 Mini headlight generation is 50% smaller and 40% lighter than its big brother M99. This M99 Mini Pro-25 headlight is the first to allow the use of high beam and low beam according to the revised German Road Traffic Licensing Regulation in 2017.

Features of the Supernova M99 Mini Pro-25 headlight

• 10 – 16 W high beam: 1,150 lumens, 260 Lux (5V = 12W; 6V = 7.5W; 12V = 17W )
• 5.2 W low beam: 450 lumens, 150 Lux (all voltages = 5.2 W)
• High beam button included
• Light source: 10 x automotive LEDs
• Holder options: stem (ø 31.8 mm), Handlebar Universal HBM (ø 31.8 / 35 mm)
• Input voltage: 5 V – 12 V
• Color: matt black, anodized aluminum
• L x W x H: 38.1 x 78 x 50 mm
• Weight: 123g including button
• Optics: M99 matrix reflector
• Functions: high beam, low beam
• Approvals: K number
• Cable length: 1,450 mm
• Hardened, anti-reflective coated, break-proof windshield
• IP67 waterproof

Note on the light intensity

Depending on the input voltage, the high beam power of the headlight will be changed. This means, at 6 volts system voltage, the headlight provides a maximum of 7.5 watts and thus does not reach the full power of 260 lux in high beam mode. The maximum output of 17 watts is only achieved in 12-volt mode. The low beam is 5.2 watts at 150 lux in all voltage ranges from 5 volts to 12 volts.

Please note: The Supernova M99 Mini Pro-25 headlight is supplied without bracket and adapter cable. The Multimount CRC can be used as a mount in combination with the CRC stem.

For a complete compatibility list to popular drives, click here.
